1. Design Philosophy: Defeating Spatial Inertia
Conventional folding chairs are notorious for architectural compromises: stamped sheet metal that bites into the back, rickety diagonal crossbars that flex precariously under lateral torque, and awkward aesthetic silhouettes that are hastily banished to basement closets when dinner guests depart. The FoldForm Chair MK.IV represents a ground-up reconsideration of portable seating from the perspective of modern high-density structural architecture.
Our team spent 34 months developing an articulated multi-link joint array that eliminates diagonal struts altogether. When fully opened, the MK.IV exhibits the visual calmness, monolithic stance, and structural permanence of a classic Scandinavian dining chair. When folded, it flattens into an absolute 18.2mm profile that can easily slide into a standard slotted credenza, hang cleanly on an architectural wall rail, or tuck into the dead space beside a refrigerator.
2. Structural Kinematics & Joint Geometry

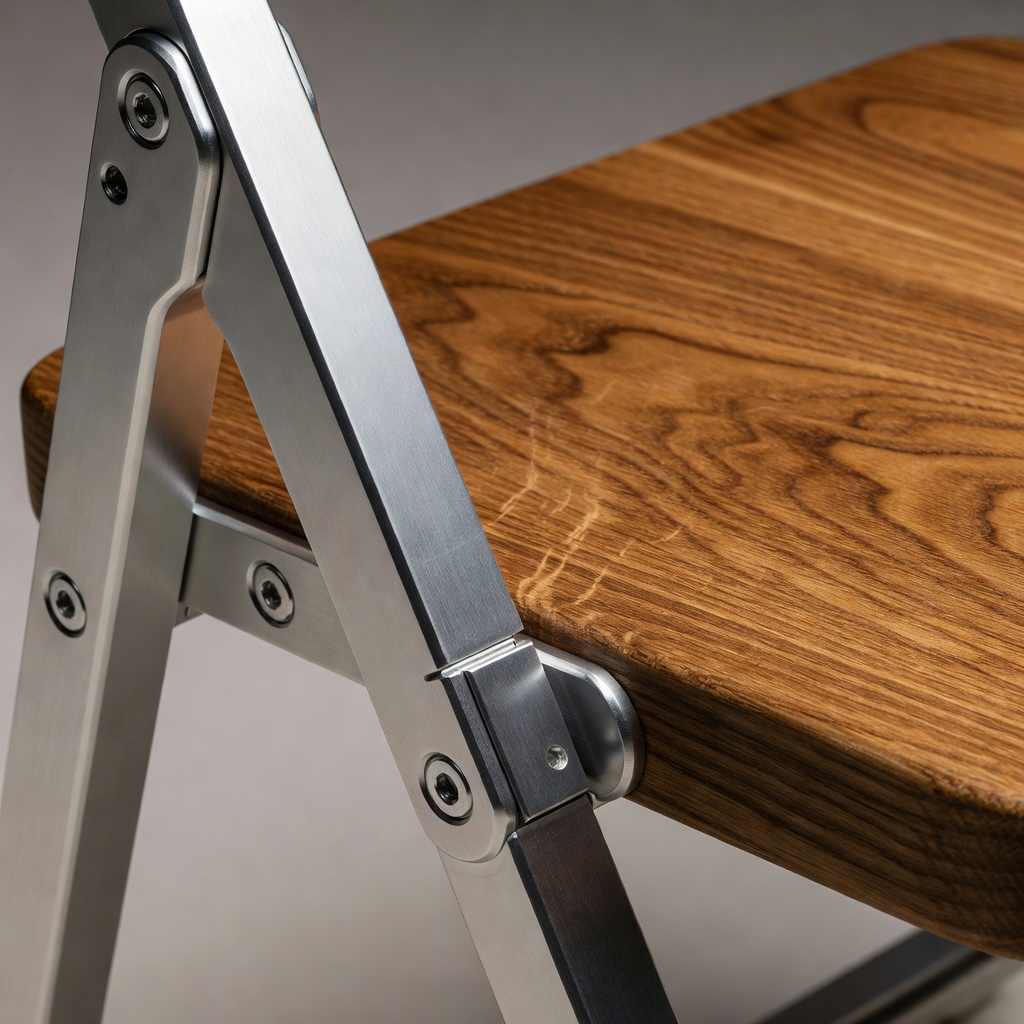

The mechanical core of the FoldForm Chair MK.IV relies on two proprietary bi-axial revolute pairs fabricated from cold-forged 7075-T6 aero-alloy. The kinematics operate in a synchronized 3-step continuous motion:
- Primary Axis Lift: The seat panel elevates upward along a constrained 88-degree parabolic arc.
- Secondary Stanchion Retreat: As the seat rises, an internal 316 stainless steel draw-link pulls the front leg stanchion directly into a recessed groove under the ash seat plate.
- Magnetic Detent Engagement: In the final 5mm of closure, six N52 grade neodymium magnets pull the front and rear assemblies flush with 22 pounds of clamping force, ensuring zero rattle during carrying.
3. Technical & Mechanical Specifications
| Metric / Dimension | Metric Value | Imperial Equivalent | Tolerance |
|---|---|---|---|
| Expanded Dimensions (H × W × D) | 820 × 480 × 510 mm | 32.2 × 18.9 × 20.1 in | ± 0.5 mm |
| Stowed Thickness (Folded Flat) | 18.2 mm | 0.716 in | ± 0.2 mm |
| Seat Height (Ergonomic Dining Standard) | 450 mm | 17.7 in | ± 0.5 mm |
| Net Weight | 4.18 kg | 9.21 lbs | ± 0.05 kg |
| Max Certified Static Load Capacity | 340 kg | 749.5 lbs | EN 12520 Certified |
| Cycle Life Fatigue Testing | 50,000 continuous cycles | Zero joint play or binding | BIFMA X5.1 Compliant |
4. Materiality & Ethical Provenance
Every wooden panel utilized in the FoldForm MK.IV is sourced exclusively from FSC®-certified sustainable American ash timber stands located in the Appalachian hardwood region. The timber undergoes a proprietary 60-day acoustic kiln-drying procedure to equilibrate moisture content precisely at 7.8%—preventing dimensional shrinkage or joint binding even in extreme desert or subtropical climates.
The metallic structural spine is CNC-machined from solid billet aluminum containing 85% post-industrial recycled feedstock. Finishing is performed with a solvent-free physical vapor deposition (PVD) hard-coat matte anodization, creating an impenetrable 35-micron surface barrier resistant to key scratches, wine spills, and atmospheric oxidation.
5. Procurement & Custom Finishes
The FoldForm Chair MK.IV is available for direct residential commissions and volume contract hospitality projects. Lead time for direct deliveries is 14 to 21 business days. Custom architectural species (Black Walnut, Quarter-Sawn White Oak, Smoked Oak) and bespoke anodized hues (Champagne Gold, Obsidian Black, Raw Silver) are available upon request for orders of 6 units or more.
Order the FoldForm MK.IV Direct
Individual unit MSRP: $480.00 USD. Sets of 4 or 6 include magnetic wall bracket.
